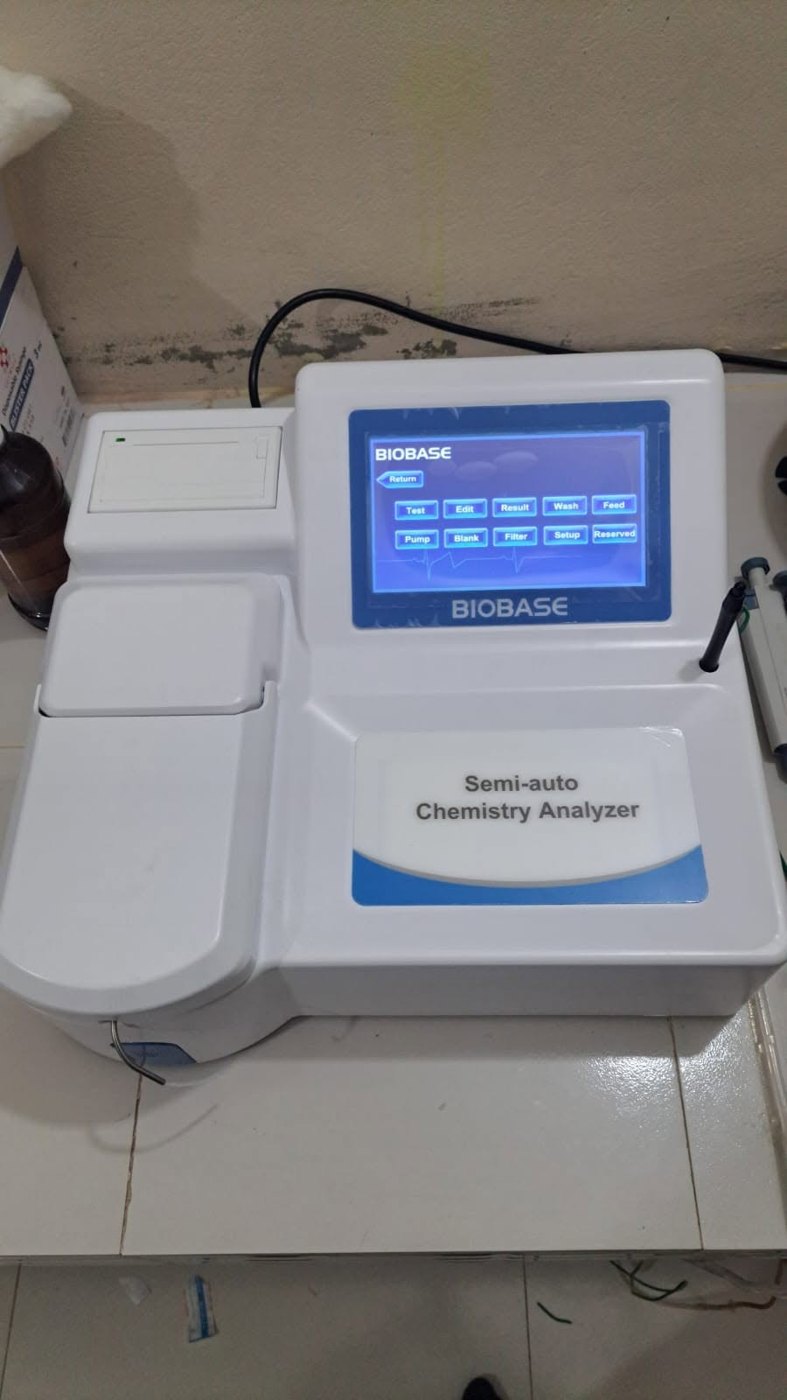

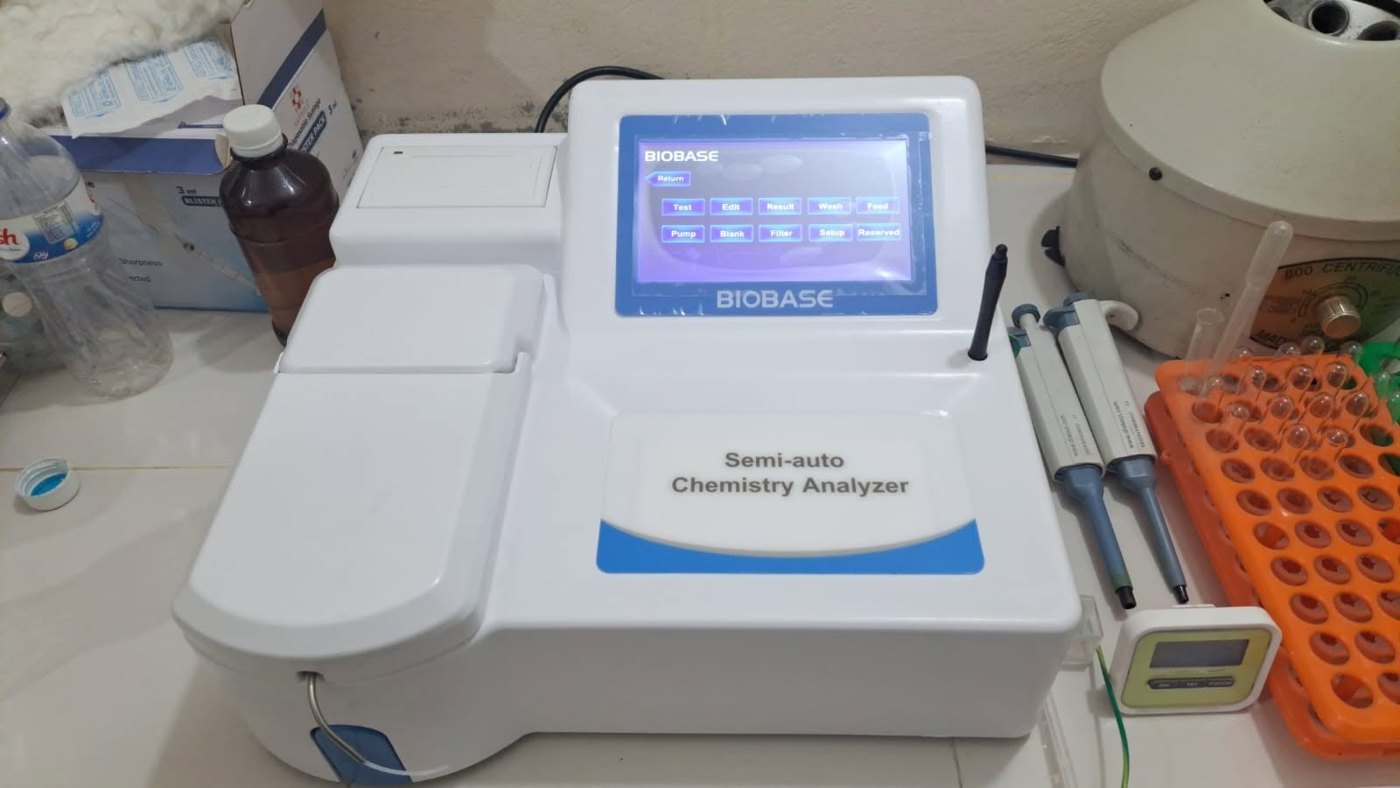

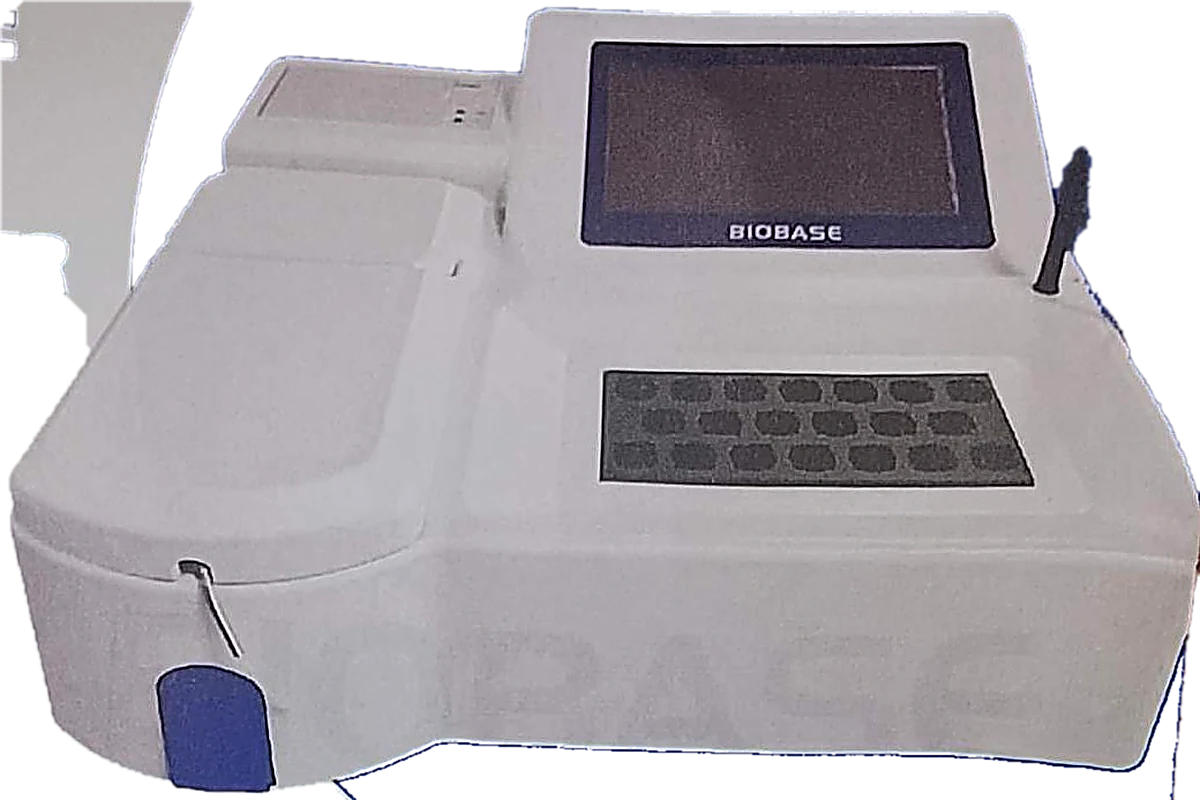

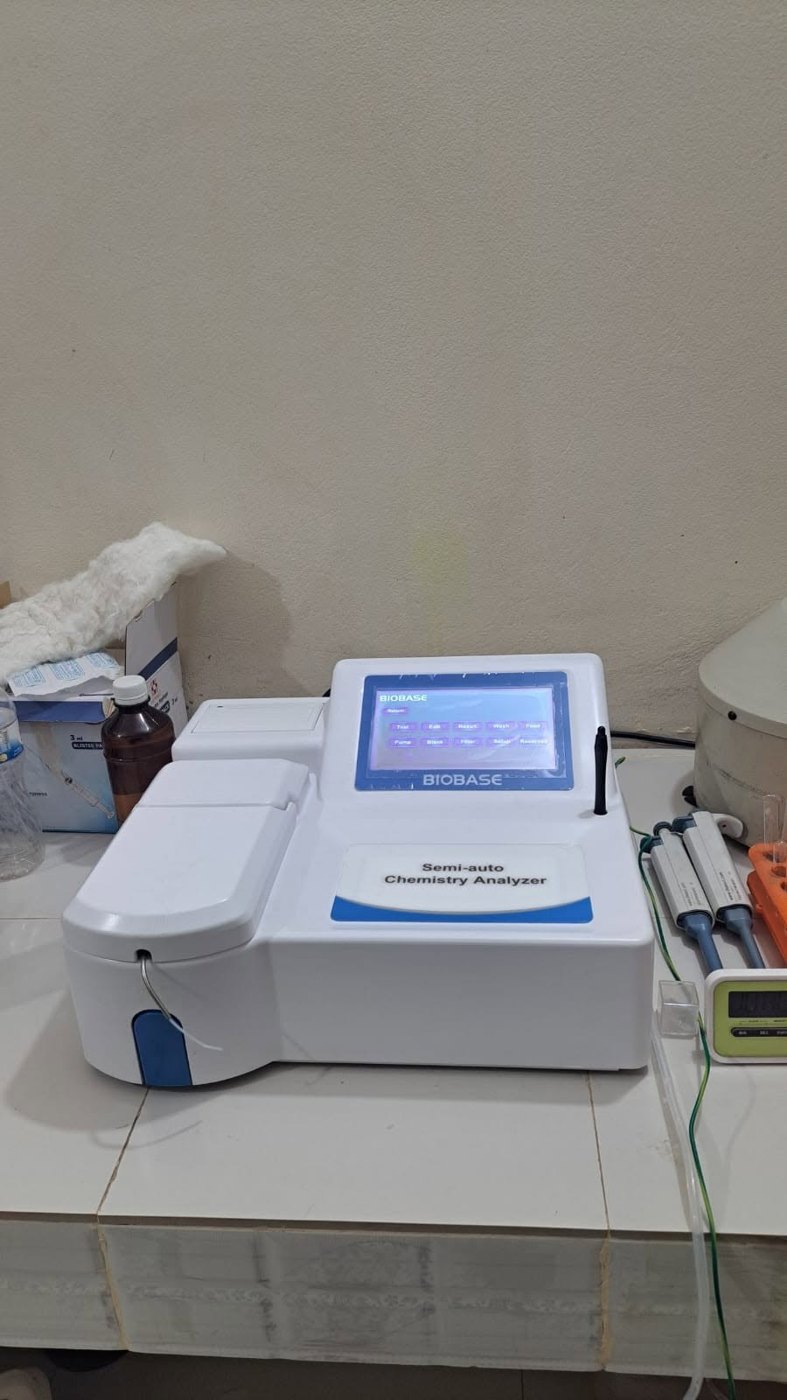

BIOBASE-SILVER Semi Auto Chemistry Analyzer

Hover to zoom, click for full screenTap to zoom

Biochemistry Analyzers

Semi automatic chemistry analyzer with one button operation, 20 incubating positions, QC charts and real time graphs.

Brand: BIOBASE
Model: BIOBASE-SILVER
Price: Price on request

1 year warranty5 years service

Get a Quote Ask on WhatsApp

Or call our product specialist: +88 01717 883 543

Overview

Semi automatic chemistry analyzer with one button operation, 20 incubating positions, QC charts and real time graphs.

Key features

Easy operation with one button
End point, kinetic, fixed time and rate
Filters 340 to 630 nm plus 2 open positions
20 incubating positions
Stores 144 test programs and 5600 results
QC charts stored, displayed and printed
37 C flow cell and incubation
Real time graph display and print

Supplied by Capstone International Ltd. with installation, operator training, 1 year warranty and 5 years service.

Specifications

Reading cuvette	Quartz; flow through cell and direct reading
Incubating positions	20
Light source	6V 10W long life halogen lamp
Filters	340, 405, 450, 510, 546, 578, 630 nm plus 2 open positions
Wavelength accuracy	plus or minus 2 nm
Measuring range	0 to 3.500 O.D.
Photometric linearity and accuracy	plus or minus 2% from 0 to 2.500 O.D.
Incubator temperature	25, 30 and 37 C
Display	Touch screen
Printer	Built in thermal printer
Interface	RS-232, USB
Power supply	AC 110/220V, 60/50Hz
External size	400 x 380 x 200 mm
Gross weight	12 kg

What it is used for

Blood sugar, lipid profile, liver and kidney function tests

Routine chemistry in clinics and small laboratories

QC charts for daily quality checks

Up to 20 samples incubating at the same time

How to use

1
Switch on the analyzer and let the lamp and temperature settle (about 15 minutes).
2
Choose the test program, for example glucose or creatinine.
3
Run a blank with distilled water, then the standard or calibrator.
4
Mix the sample with the reagent and incubate as the reagent kit says.
5
Aspirate the reaction mixture or place the cuvette in the reading position.
6
Read and print the result. Run quality control at the start of each day.
7
Flush the flow cell with distilled water when you finish.

Our engineers train your staff on site after installation. These steps are a short guide; always follow the operator manual supplied with the machine.
