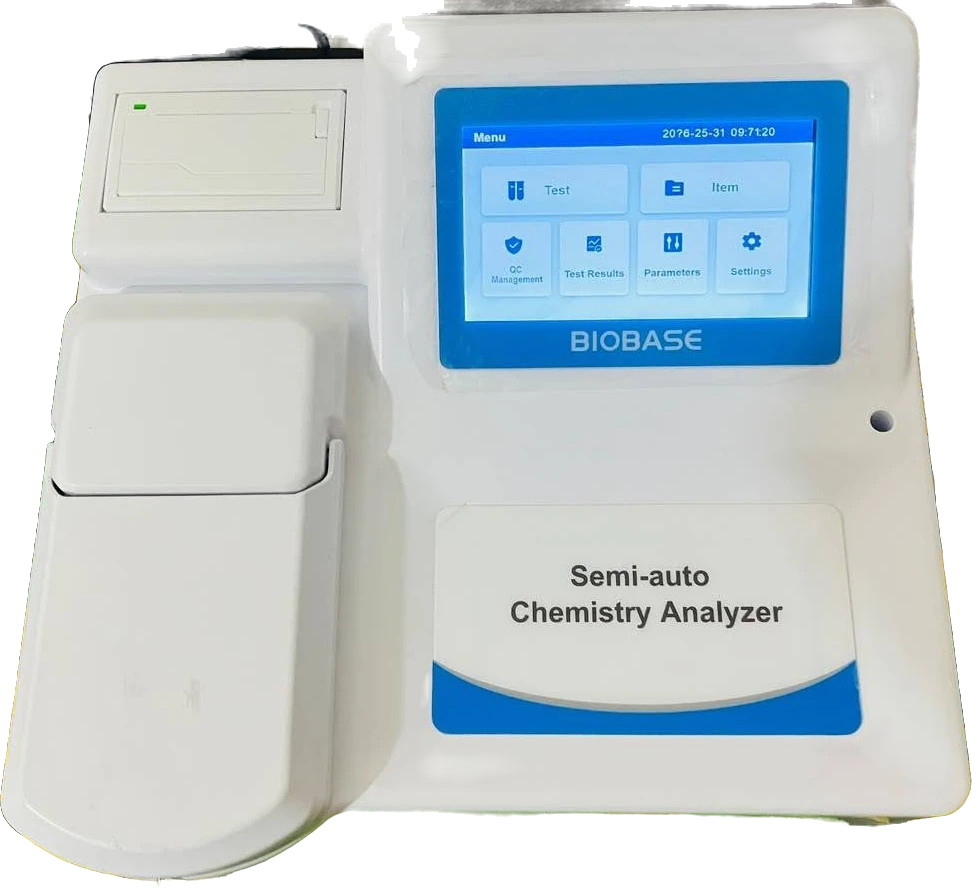

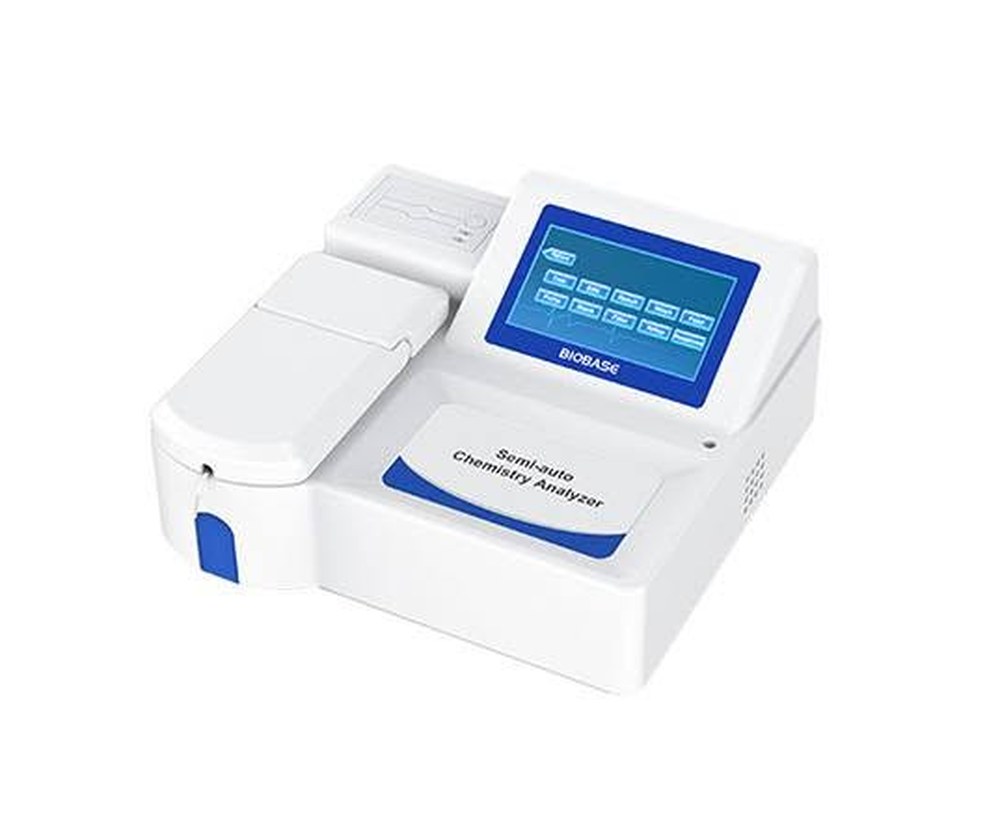

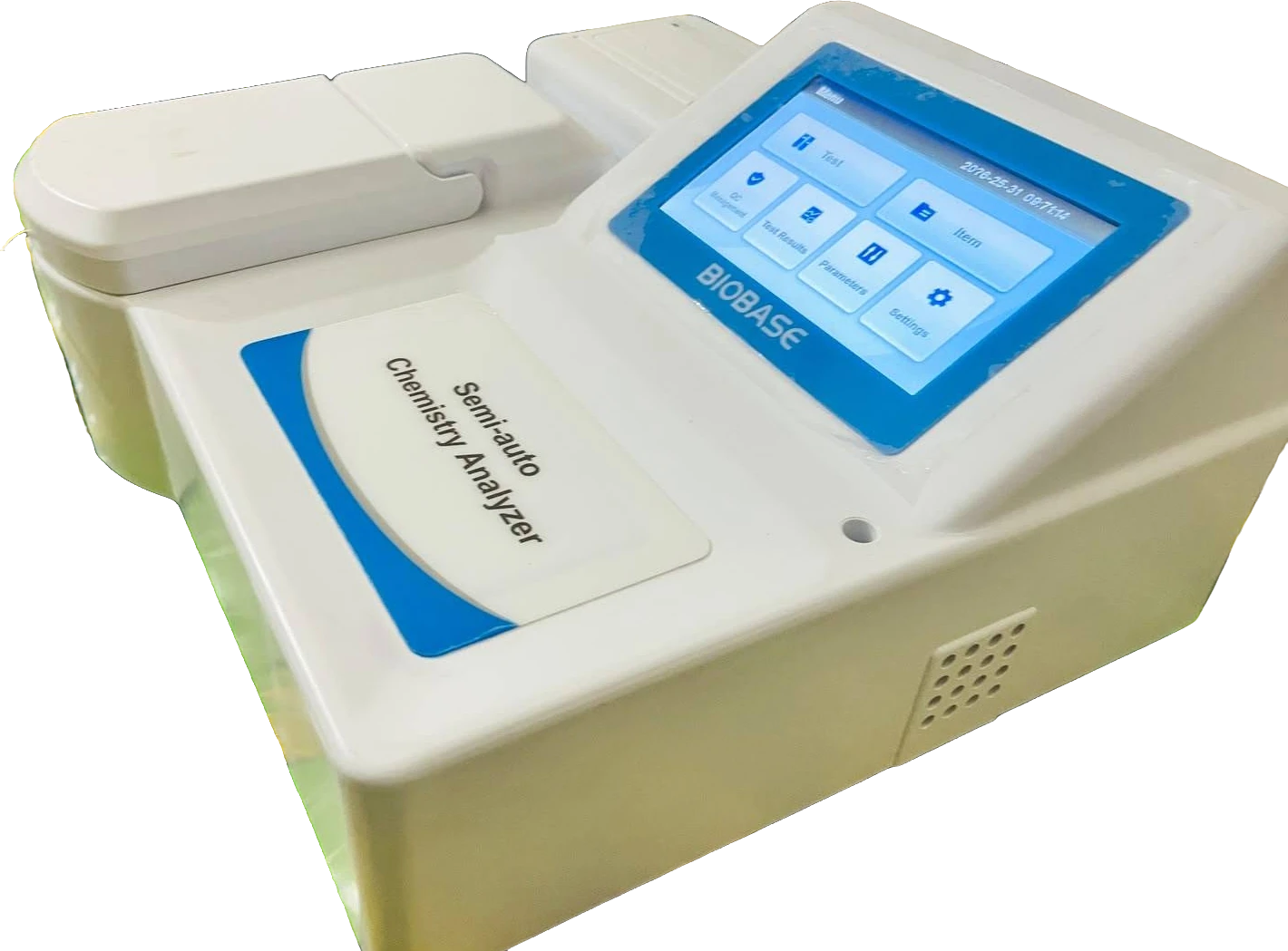

BIOBASE-CLAIRE Semi Auto Chemistry Analyzer

Hover to zoom, click for full screenTap to zoom

Biochemistry Analyzers

Compact semi automatic chemistry analyzer with a 7 inch touch screen, large memory and built in printer.

Brand: BIOBASE
Model: BIOBASE-CLAIRE
Price: Price on request

1 year warranty5 years service

Get a Quote Ask on WhatsApp

Or call our product specialist: +88 01717 883 543

Overview

Compact semi automatic chemistry analyzer with a 7 inch touch screen, large memory and built in printer.

Key features

7.0 inch LCD touch screen, easy graphical interface
Stores 144 test programs and 5600 results
Built in thermal printer that flags abnormal results

Supplied by Capstone International Ltd. with installation, operator training, 1 year warranty and 5 years service.

Specifications

Sample type	Serum, plasma, urine, cerebrospinal fluid
Analytical method	End point, fixed time (two point), dynamic (rate)
Cuvette	Flow through and direct reading
Wavelength accuracy	plus or minus 2 nm
Screen	7.0 inch LCD touch screen
Printer	Built in thermal
Interface	RS-232, USB
Consumption	100VA
Power supply	AC 110/220V, 60/50Hz
External size	400 x 410 x 190 mm
Net weight	8 kg; gross weight: 11 kg

What it is used for

Kidney tests: urea, creatinine, uric acid

Liver tests: total and direct bilirubin, ALT (SGPT), AST (SGOT), ALP, GGT

Lipid profile: cholesterol, triglycerides, HDL-C, LDL-C

Glucose and total protein

Small to medium laboratories, clinics and diagnostic centres

How to use

1
Switch on the analyzer and let the lamp and temperature settle (about 15 minutes).
2
Choose the test program, for example glucose or creatinine.
3
Run a blank with distilled water, then the standard or calibrator.
4
Mix the sample with the reagent and incubate as the reagent kit says.
5
Aspirate the reaction mixture or place the cuvette in the reading position.
6
Read and print the result. Run quality control at the start of each day.
7
Flush the flow cell with distilled water when you finish.

Our engineers train your staff on site after installation. These steps are a short guide; always follow the operator manual supplied with the machine.
