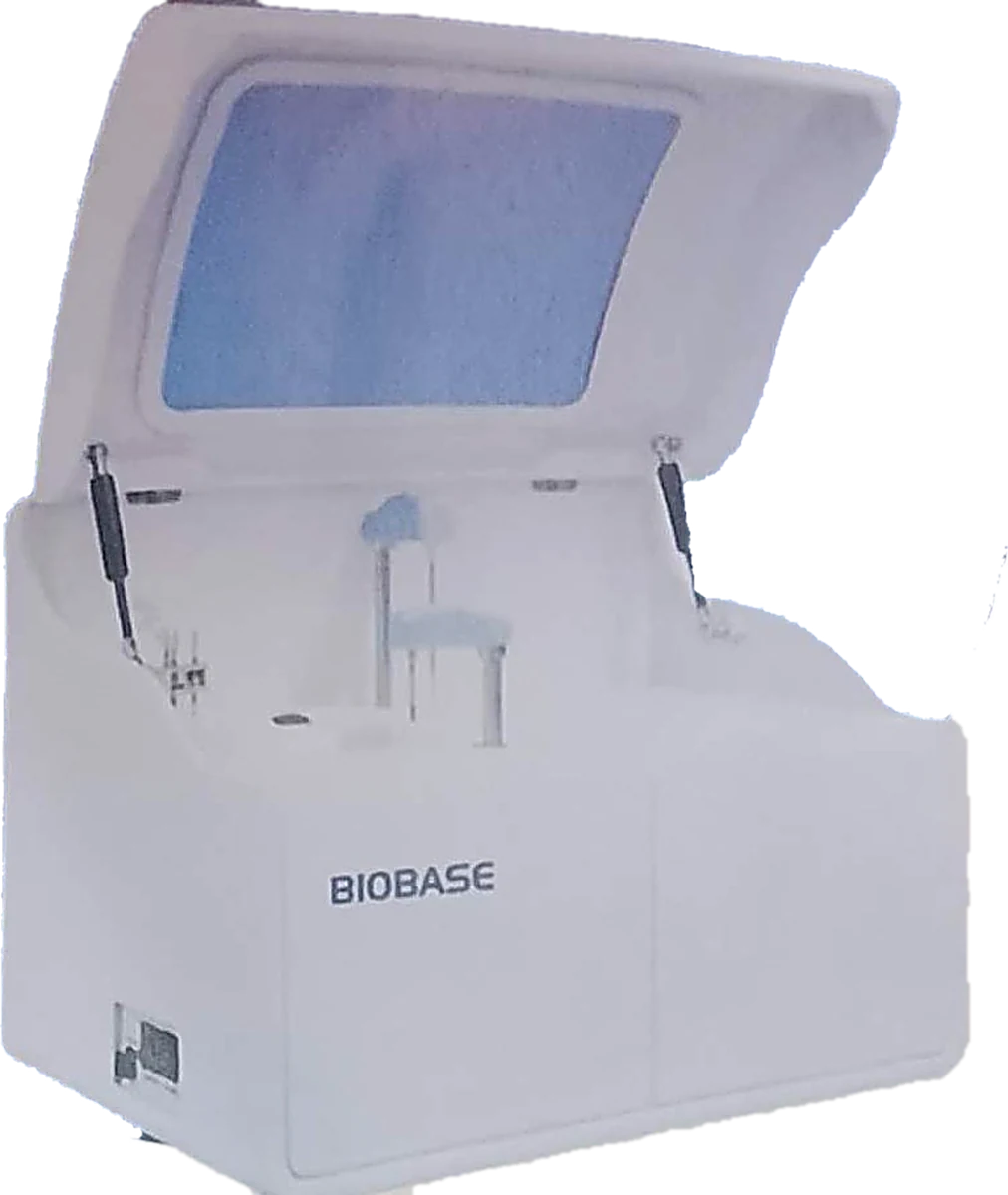

BIOBASE BK-200 Auto Chemistry Analyzer

Hover to zoom, click for full screenTap to zoom

Fully automatic chemistry analyzer with 200 tests per hour, refrigerated reagent tray, liquid level detection and bi-directional LIS.

Brand: BIOBASE
Model: BK-200
Price: Price on request

1 year warranty5 years service

Get a Quote Ask on WhatsApp

Or call our product specialist: +88 01717 883 543

Overview

Fully automatic chemistry analyzer with 200 tests per hour, refrigerated reagent tray, liquid level detection and bi-directional LIS.

Key features

37 sample positions
28 reagent positions
48 reaction cuvettes
200 tests per hour
Probe anti collision and liquid level detection

Supplied by Capstone International Ltd. with installation, operator training, 1 year warranty and 5 years service.

Specifications

Throughput	200 tests per hour
Analysis method	End point, fixed time, rate (kinetic)
Certificates	CE, FDA, ISO9001, ISO14001, ISO13485
Sample positions	37
Reagent positions	28
Sample volume	2 to 70 microlitre
Reagent volume	20 to 350 microlitre
Probe	Teflon coated, anti collision, liquid level detection
Probe washing	Automatic, interior and exterior
Reagent cooling	Refrigerated tray with independent switch
Temperature control	37 C plus or minus 0.2, real time monitoring
Light source	6V/10W halogen lamp
Wavelength	340 to 800 nm, 12 wavelengths
Absorbance	0 to 3.0 Abs
Software	Windows 7/8/10
LIS	Bi-directional, HL7
Power supply	AC 220V 50/60Hz, 300W
Water consumption	Deionized water 5 L per hour
Net weight	36 kg; gross weight: 55 kg

What it is used for

Liver function tests: SGPT, SGOT, ALP, bilirubin

Kidney function tests: creatinine, urea, uric acid

Blood sugar and lipid profile

Proteins, electrolytes and special chemistry with the right reagents

Hospital and diagnostic laboratories with high daily sample load

How to use

1
Fill the deionized water tank and switch on the analyzer and the computer.
2
Load the reagents in the cooled reagent tray and check reagent volumes on the software.
3
Run calibration and quality control for the tests of the day.
4
Place patient samples in the sample tray and enter the patient and test details.
5
Press start. The analyzer pipettes, mixes, incubates and reads by itself.
6
Check the results, then print or send them to the LIS.
7
At the end of the day run the washing program and switch off.

Our engineers train your staff on site after installation. These steps are a short guide; always follow the operator manual supplied with the machine.
