Mindray DC-30 Color Doppler Ultrasound

Hover to zoom, click for full screenTap to zoom

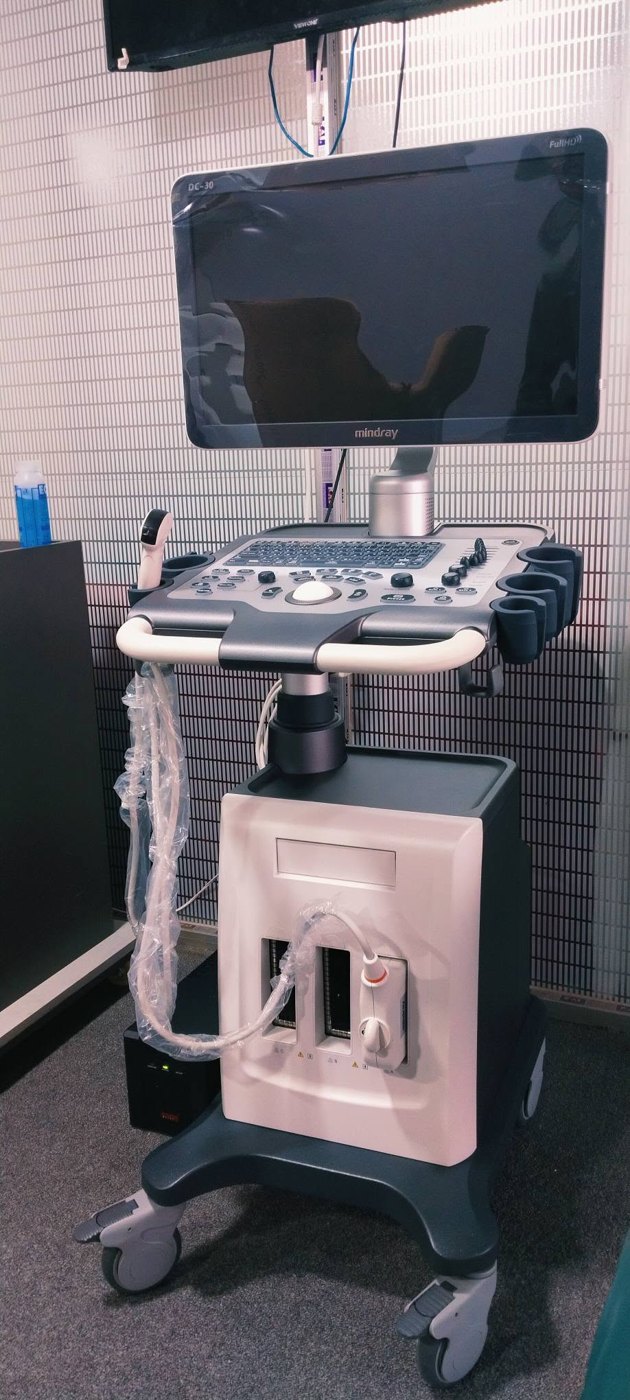

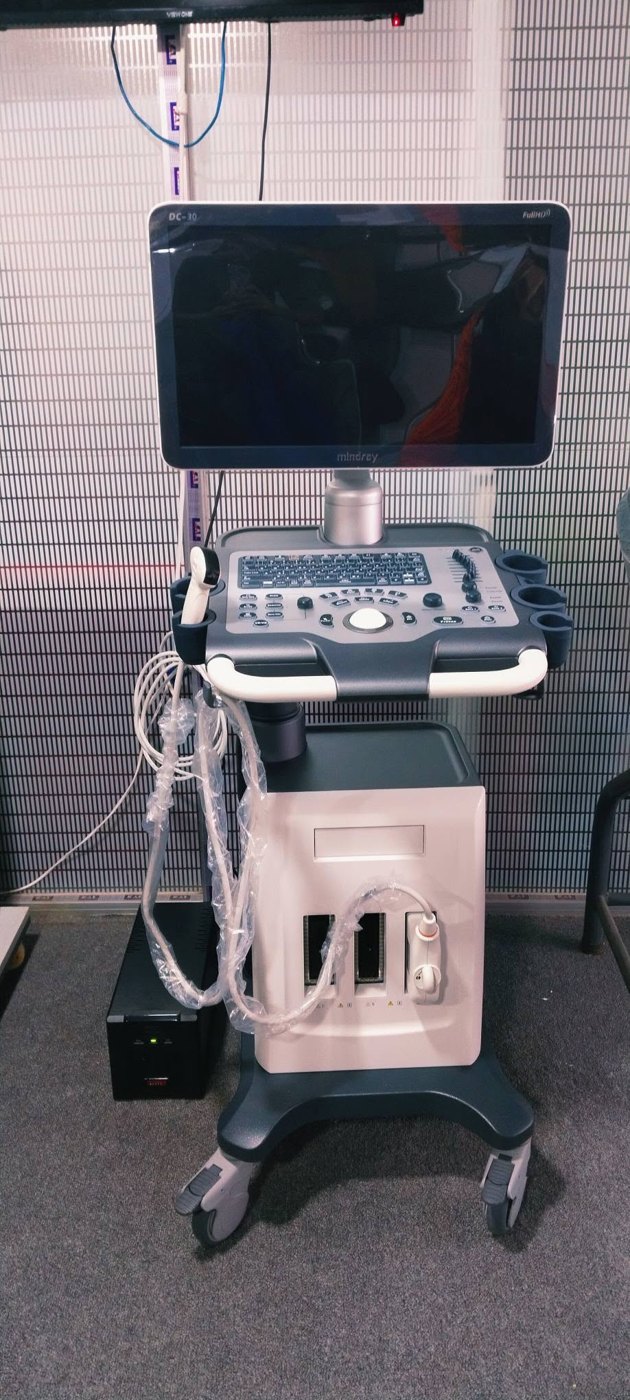

Trolley color Doppler ultrasound system from Mindray with a large Full HD monitor, ergonomic control panel and multiple transducer sockets.

Brand: Mindray
Model: DC-30
Price: Price on request

1 year warranty5 years service

Get a Quote Ask on WhatsApp

Or call our product specialist: +88 01717 883 543

Overview

Trolley color Doppler ultrasound system from Mindray with a large Full HD monitor, ergonomic control panel and multiple transducer sockets.

Key features

Large Full HD LED monitor on an adjustable arm
Backlit control panel with trackball and full keyboard
Multiple active transducer sockets
Probe holders and cable hooks on both sides
Mobile trolley with locking wheels

Supplied by Capstone International Ltd. with installation, operator training, 1 year warranty and 5 years service.

Specifications

Brand	Mindray
Model	DC-30
Type	Trolley color Doppler ultrasound
Monitor	Full HD LED
Imaging	B, M, Color, Power and PW Doppler

What it is used for

Abdominal, obstetric and gynaecology scans

Cardiac and vascular Doppler studies

Small parts: thyroid, breast, testis

Hospitals and diagnostic centres

How to use

1
Switch on the system and choose the patient and exam type.
2
Select the right probe: convex for abdomen, linear for small parts, phased or volume for cardiac and 4D.
3
Apply ultrasound gel on the probe and the scan area.
4
Adjust depth, gain and focus, or press auto optimise.
5
Use Color, Power or PW Doppler to check blood flow where needed.
6
Freeze, measure and save images, then print or export the report.
7
Clean the probe after every patient and switch off at the end of the day.

Our engineers train your staff on site after installation. These steps are a short guide; always follow the operator manual supplied with the machine.
