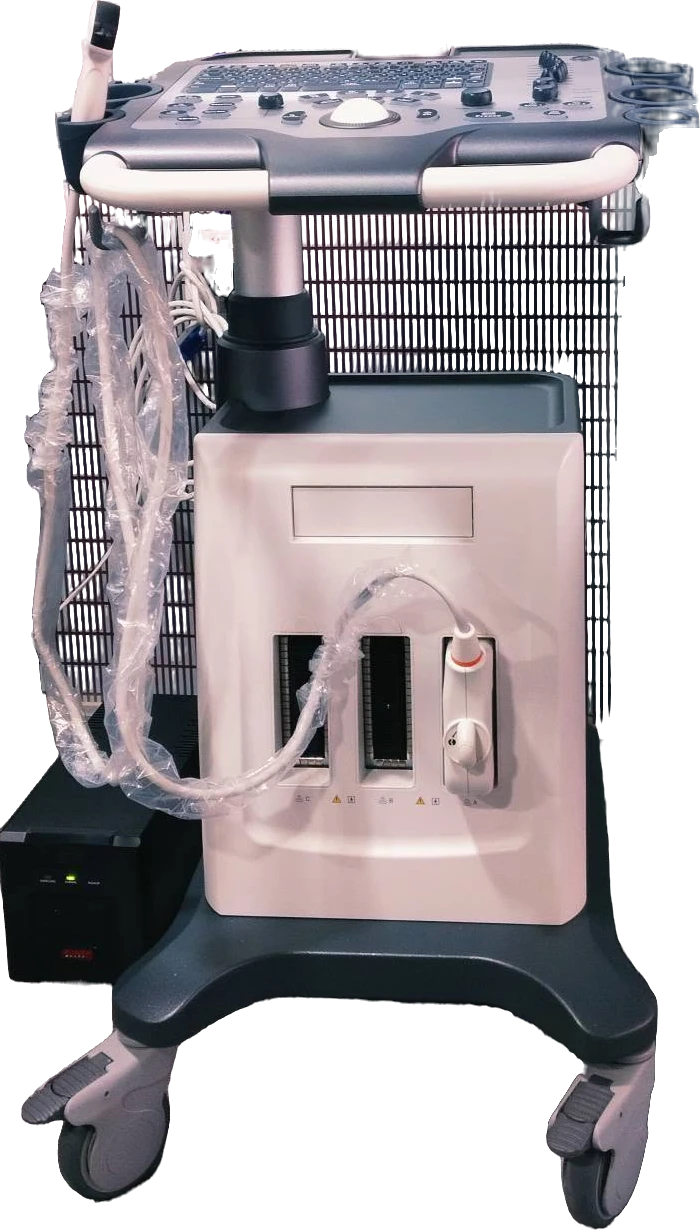

Mindray DC-28 4D Color Doppler

Hover to zoom, click for full screenTap to zoom

Digital ultrasonic diagnostic imaging system with 4D imaging, phase shift harmonic imaging and speckle reduction for sharper, cleaner images.

Brand: Mindray
Model: DC-28
Price: Price on request

1 year warranty5 years service

Get a Quote Ask on WhatsApp

Or call our product specialist: +88 01717 883 543

Overview

Digital ultrasonic diagnostic imaging system with 4D imaging, phase shift harmonic imaging and speckle reduction for sharper, cleaner images.

Key features

15 inch LED monitor with easy handle (17 inch optional)
3 active transducer sockets
Height adjustable control panel
4 programmable keys
Independent gel warmer
Built in battery for live scanning
1 TB hard disk, DVD-RW and 3 USB ports
PSH phase shift harmonic, iBeam and iClear imaging
4D imaging with Surface, Max, Min and X-ray rendering
iPage with up to 25 slices

Supplied by Capstone International Ltd. with installation, operator training, 1 year warranty and 5 years service.

Specifications

Display	15 inch LED monitor (17 inch optional)
Transducer sockets	3 active
Imaging	B, M, Color, Power, PW Doppler, 3D and 4D
Harmonic imaging	PSH Phase Shift Harmonic
Compound imaging	iBeam spatial compounding
Speckle reduction	iClear
4D tools	iPage, up to 25 slices
Storage	1 TB hard disk, DVD-RW
Ports	3 USB
Battery	Built in, for live scanning

What it is used for

Abdominal scans: liver, gall bladder, kidney, pancreas

Obstetrics and gynaecology, including 3D and 4D fetal imaging

Cardiac and vascular Doppler studies

Small parts: thyroid, breast, testis

Musculoskeletal and nerve imaging

How to use

1
Switch on the system and choose the patient and exam type.
2
Select the right probe: convex for abdomen, linear for small parts, phased or volume for cardiac and 4D.
3
Apply ultrasound gel on the probe and the scan area.
4
Adjust depth, gain and focus, or press auto optimise.
5
Use Color, Power or PW Doppler to check blood flow where needed.
6
Freeze, measure and save images, then print or export the report.
7
Clean the probe after every patient and switch off at the end of the day.

Our engineers train your staff on site after installation. These steps are a short guide; always follow the operator manual supplied with the machine.
