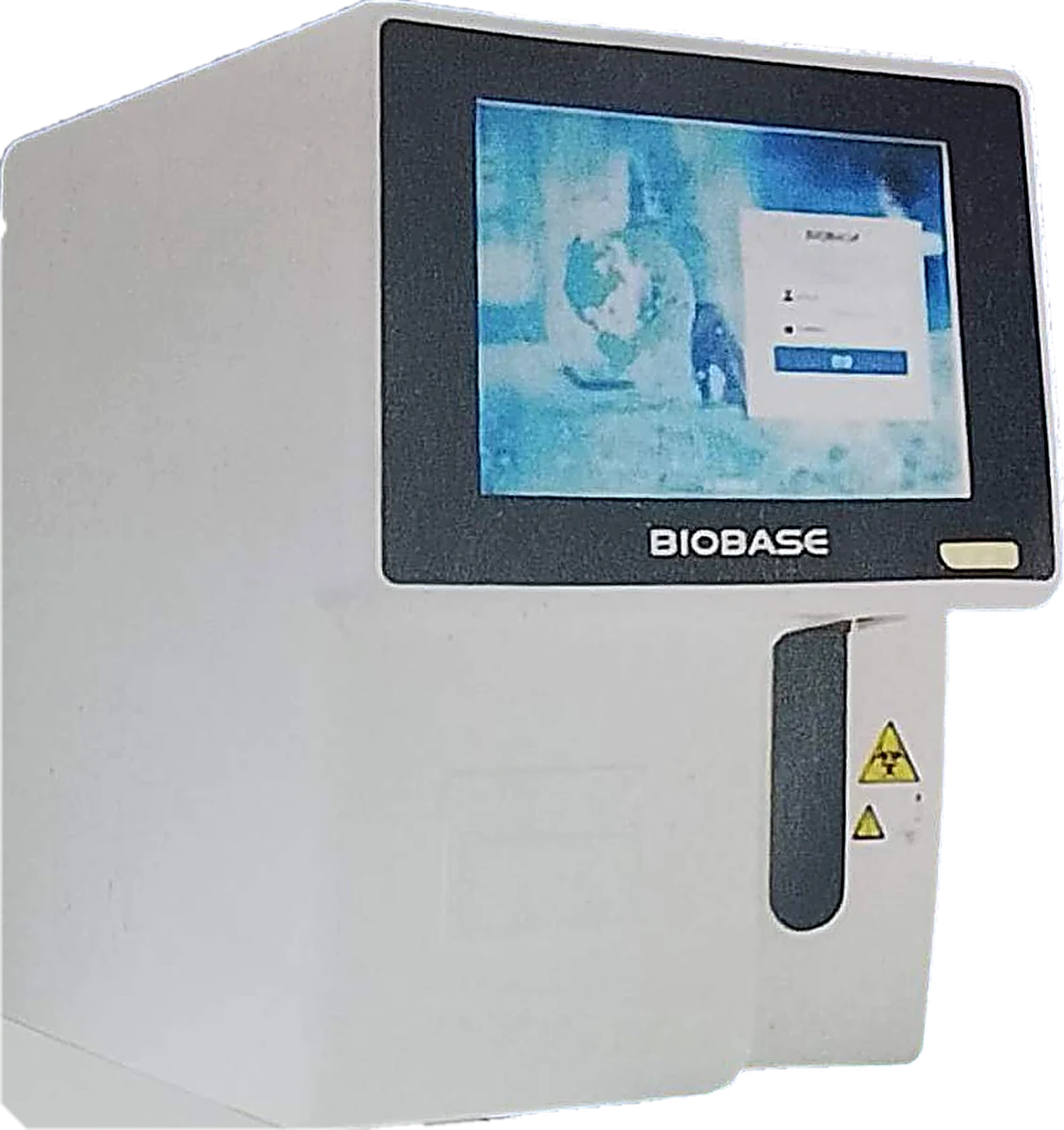

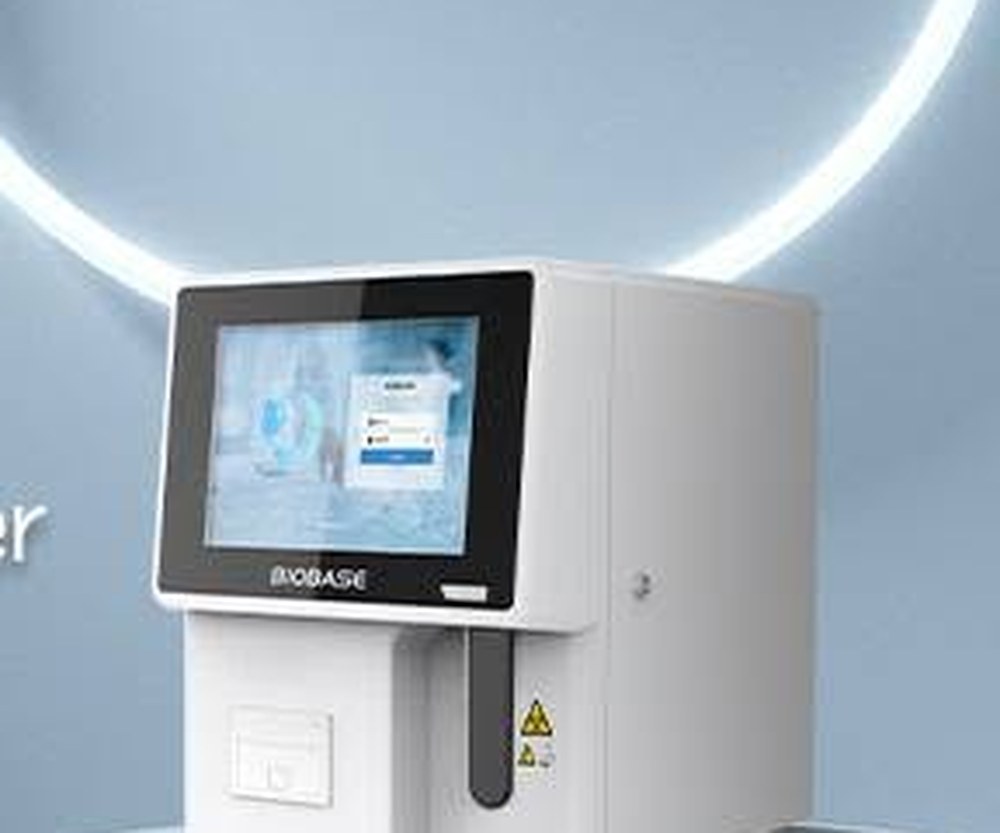

BIOBASE BK-3100 Auto Hematology Analyzer

Hover to zoom, click for full screenTap to zoom

Accurate, fast blood analysis for hospitals, clinics and diagnostic centres. Three part analyzer with 21 parameters, 3 histograms and a 9.7 inch color touch screen, running 24 hours with automatic cleaning.

Brand: BIOBASE
Model: BK-3100
Price: Price on request

1 year warranty5 years service

Get a Quote Ask on WhatsApp

Or call our product specialist: +88 01717 883 543

Overview

Accurate, fast blood analysis for hospitals, clinics and diagnostic centres. Three part analyzer with 21 parameters, 3 histograms and a 9.7 inch color touch screen, running 24 hours with automatic cleaning.

Key features

9.7 inch color touch LCD
10 microlitre venous or capillary sample, 20 microlitre prediluted
60 samples per hour
21 parameters and 3 histograms
Automatic cleaning and blockage removal
Built in thermal printer, external printer support
Cyanide free HGB
Auto and manual calibration
LIS support

Supplied by Capstone International Ltd. with installation, operator training, 1 year warranty and 5 years service.

Specifications

Principle	Impedance for WBC, RBC, PLT; colorimetric for HGB
Channels	2
Parameters	21 parameters with 3 histograms (WBC, RBC, PLT)
Sample volume	Venous 10 microlitre, capillary 10 microlitre, prediluted 20 microlitre
Throughput	60 samples per hour
Calibration	Manual and auto
Printing	Auto and manual; LIS bi-directional
Reagents	Diluent 10 L, lyse 250 ml, probe cleanser 50 ml
Interface	4 USB, network port, RS232
Storage	100,000 results with histograms
Power supply	100 to 240V AC, 50/60Hz, 150VA

What it is used for

Complete blood count (CBC) with 3 part differential

Anaemia and infection screening

Platelet count, for example in dengue cases

Routine checks in clinics, hospitals and diagnostic centres

Small and medium laboratories that need a reliable 24 hour analyzer

How to use

1
Collect blood in an EDTA tube and mix it gently.
2
Switch on the analyzer and let it finish the start up cleaning and background check.
3
Run the daily quality control sample and check it passes.
4
Enter the patient ID and choose the mode (venous, capillary or prediluted).
5
Place the sample under the probe and press the aspirate key.
6
Read the results and histograms on the screen, then print or send them to the LIS.
7
At the end of the day run the shutdown cleaning.

Our engineers train your staff on site after installation. These steps are a short guide; always follow the operator manual supplied with the machine.
