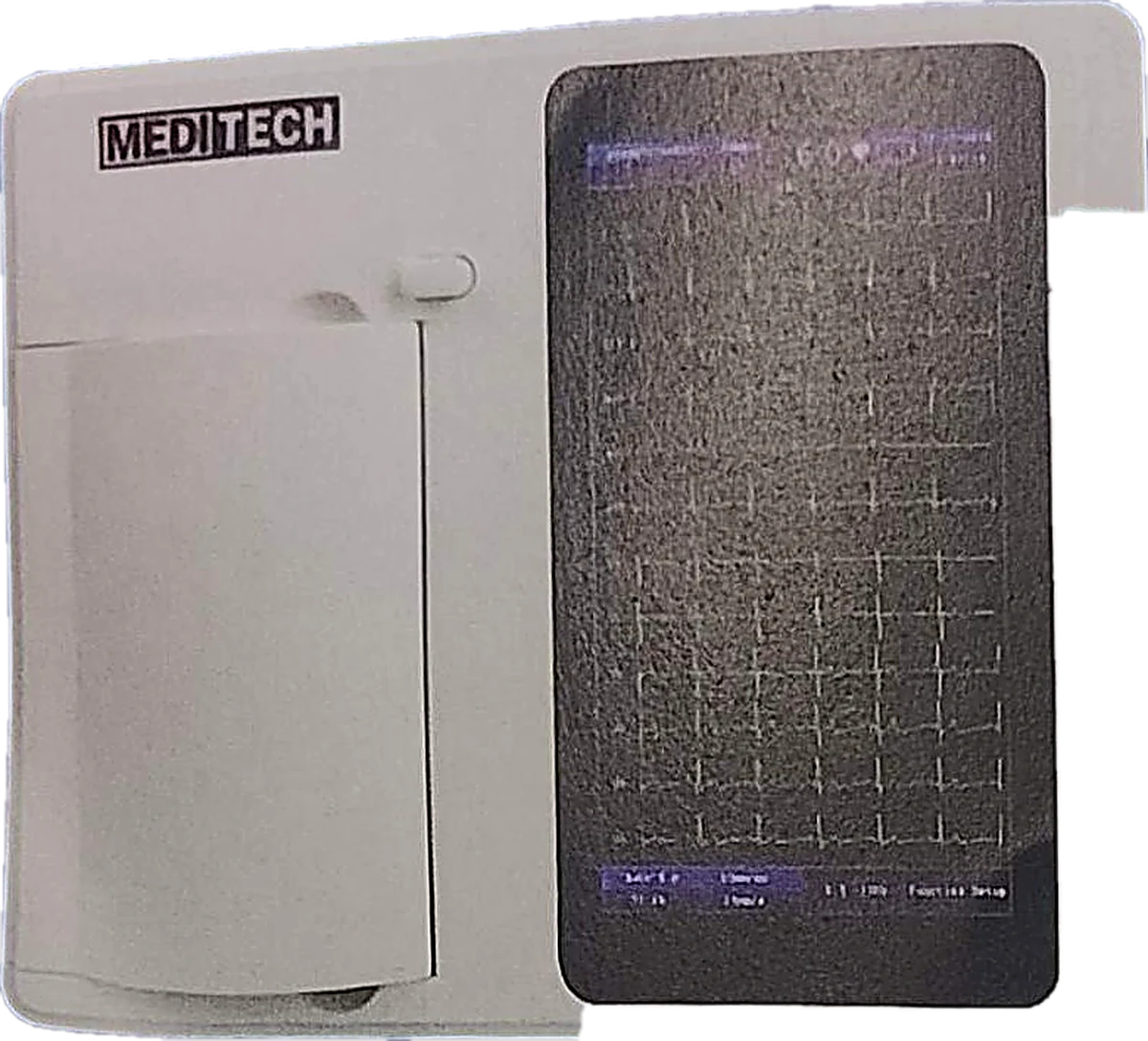

Meditech EKG-6A 6 Channel ECG Machine

Hover to zoom, click for full screenTap to zoom

ECG Machines

Slim, light 6 channel ECG with a 7 inch color touch screen and 12 lead simultaneous acquisition.

Brand: Meditech
Model: EKG-6A
Price: Price on request

1 year warranty5 years service

Get a Quote Ask on WhatsApp

Or call our product specialist: +88 01717 883 543

Overview

Slim, light 6 channel ECG with a 7 inch color touch screen and 12 lead simultaneous acquisition.

Key features

7 inch color touch screen
Patient management: name, age, ID and sex
12 lead simultaneous acquisition and display
3 lead printing on 80 mm thermal paper
Rechargeable Li-ion battery, 2 hours continuous work
Real time waveform, USB storage for 1000 reports

Supplied by Capstone International Ltd. with installation, operator training, 1 year warranty and 5 years service.

Specifications

Channels	6 channel printing, 12 lead acquisition
Screen	7 inch color touch
Printing	80 mm thermal paper
Storage	External USB, 1000 reports
Interface	USB, RS232
Power	AC 100 to 240V, 50/60Hz
Battery	14.8V 2200mAh lithium, 2 hours

What it is used for

12 lead resting ECG in chambers, clinics and wards

Chest pain and heart rhythm checks

Pre operative and health check up ECG

Bedside and home visits with the built in battery

How to use

1
Switch on the machine and enter the patient name, age, ID and sex.
2
Ask the patient to lie down and relax; clean the skin where electrodes go.
3
Attach the 4 limb electrodes and 6 chest electrodes in the right positions.
4
Check the live waveform on the screen for a clean signal.
5
Press print or record to take the 12 lead ECG.
6
Save the report to USB if needed, then remove and clean the electrodes.

Our engineers train your staff on site after installation. These steps are a short guide; always follow the operator manual supplied with the machine.
