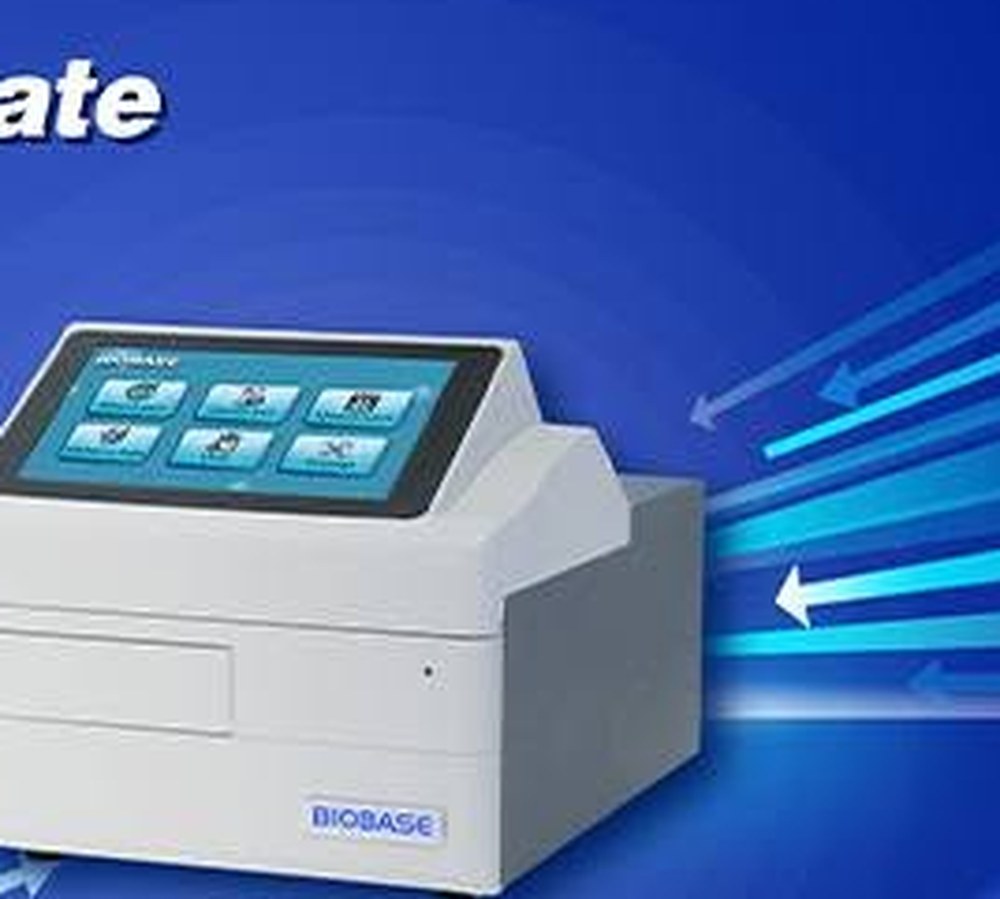

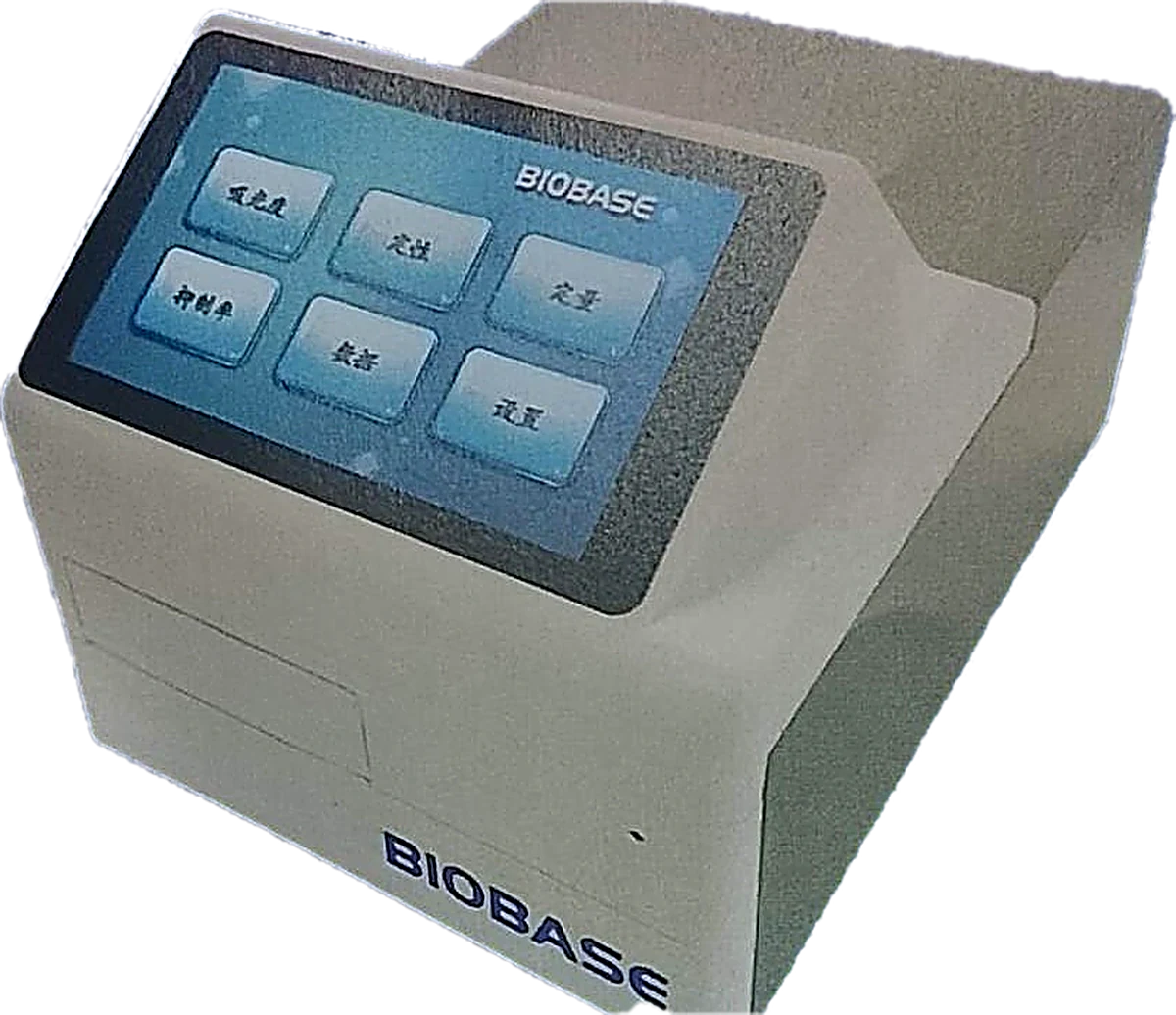

BIOBASE BK-EL10C ELISA Microplate Reader

Hover to zoom, click for full screenTap to zoom

Laboratory Analyzers

Eight channel ELISA microplate reader with a 7 second reading speed and a 10.1 inch touch screen.

Brand: BIOBASE
Model: BK-EL10C
Price: Price on request

1 year warranty5 years service

Get a Quote Ask on WhatsApp

Or call our product specialist: +88 01717 883 543

Overview

Eight channel ELISA microplate reader with a 7 second reading speed and a 10.1 inch touch screen.

Key features

8 channel vertical optical system
Reads a plate in 7 seconds
10.1 inch touch screen with visual layout
High precision ARM processor and AD chip
Multiple calculation methods

Supplied by Capstone International Ltd. with installation, operator training, 1 year warranty and 5 years service.

Specifications

Measurement channel	Vertical, 8 optical channels
Wavelength range	400 to 800 nm
Filters	405, 450, 492, 630 nm standard, up to 10 optional
Reading range	0.000 to 4.000 Abs
Linear range	0.000 to 3.000 Abs
Repeatability	CV up to 1.0%
Wavelength error	up to plus or minus 2 nm
Sensitivity	0.01 mg/L or better
Vibration	3 modes, 0 to 255 s
Display	10.1 inch touch screen
Interface	RS-232
Power	60VA, AC 220V 50Hz
Packing size	535 x 395 x 395 mm
Gross weight	13 kg

What it is used for

ELISA tests: hepatitis B and C, HIV, thyroid hormones, fertility hormones

Tumour markers and infection antibodies

Reading 96 well microplates in 7 seconds

Blood banks, hospital and research laboratories

How to use

1
Switch on the reader and let it warm up.
2
Prepare the ELISA plate as the kit instructions say and stop the reaction.
3
Choose or create the test program on the touch screen (wavelength and plate layout).
4
Place the microplate in the tray and start reading.
5
Check the absorbance, cut off and result on the screen.
6
Print or export the results, then remove the plate.

Our engineers train your staff on site after installation. These steps are a short guide; always follow the operator manual supplied with the machine.
